7212B Single Row Angular Contact Ball Bearingdintlha Litlhaloso:

Letoto la metric

Lintho tse bonahalang : 52100 Chrome Steel

Kaho : Mola o le Mong

Mofuta oa tiiso: mofuta o bulehileng

Lebelo le lekanyelitsoeng: 8300 rpm

Cage: Cage ea nylon kapa cage ea tšepe

Boitsebiso ba Cage: Polyamide(PA66) kapa Tšepe

Ho paka: Ho paka indasteri kapa ho paka lebokose le le leng

Angle ea ho ikopanya : 40 °

Boima ba 'mele: 0.78 lik'hilograma

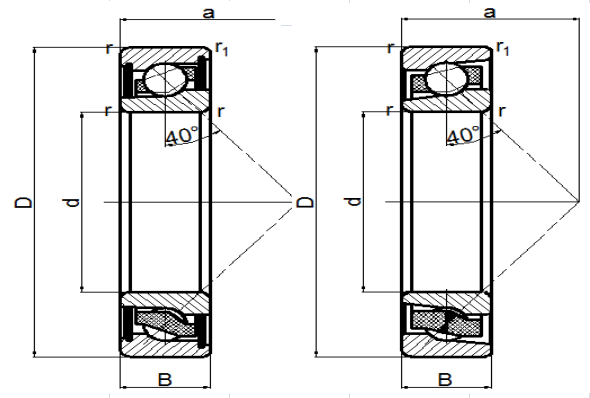

Ka sehloohong Boholo:

Bore diameter (d):60 mm

Bophara ba ka ntle (D):110mm

Bophara (B): 22 mm

Lehlakore la sebaka sa sebaka ho ea sebakeng sa khatello (a) : 47 mm

Chamfer Dimension ( r) min. :1.5mm

Chamfer Dimension ( r1) min. :1.0mm

Lintlha tsa mojaro o matla(Cr):45.05 KN

Lintlha tsa boima bo tsitsitseng(Bakor.): 42.75 KN

ABUTMENT LIEKETSENG

Bonyane bophara ba lehetla la shaft(da) min. : 69mm

Boholo ba bophara ba mahetla a matlo(Da)max. : 101mm

Boholo ba bophara ba mahetla a matlo(Db) max. 104.4 limilimithara

Boholo ba radius ea filletea shaft (ra) max. 1.5 limilimithara

Boholo ba fillet radius ea matlo(ra1) max. 1 limilimithara
